Abu Dhabi, UAE - AL TAQA - Monitoring the electrical and water energy consumption in Al-Mhrmi Mosque...

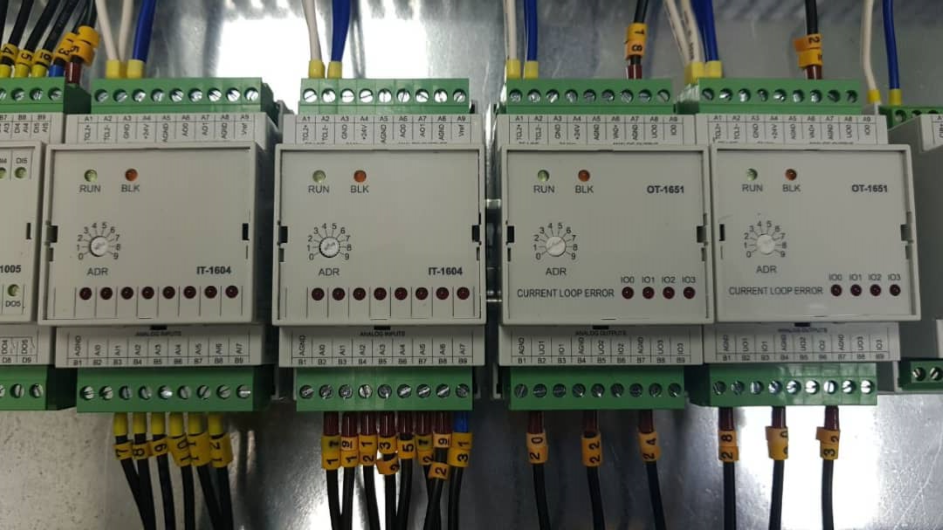

our system Foxtrot was implemented for Monitoring the electrical and water energy consumption and monitor the values of 10 CO2 sensors in Al-Mhrmi Mosque.
Implemented by: ALTAQ – Equipment CO.LLC . Abu Dhabi - UAE

There are 17 electricity monitoring points, in each one there is a 3-phase electrical meter “Teco-E20".
Also, there are 6 water monitoring points for consumption and 10 CO2 monitoring points
A superior monitoring level is implemented in this project, which is provided by SCADA system Reliance.


Main features...
Foxtrot system provides general functions for control and monitoring of electrical circuits in Mosque, and archiving information related l power consumptions, this solution has next specifications :
- monitoring the electrical parameters of each power meter
- we have bar charts for the period of consumption ( hourly - daily - weekly -monthly -annually)











Water Meter:
- The system is monitoring 6 water meters which are monitored in this window , Each meter consumption is shown in addition to the thresholds value.
- The user can calculate the total consumption for the checked meters in Total Stats section in some interval as he must select the start and the end of this interval in From and To fields. Show report button shows Hourly report for all meters from the beginning of system working. the user can use Compare charts button to access Water Compare charts window to compare between two water meters consumption using graphical bar charts.

Co2:

- 10 CO2 sensors are monitored in addition to 10 dampers whose status monitored and displayed using sliders.
