Basic features...
• Programmable controller (PLC) according to IEC EN 61131 standard.
• Outstanding integration of control systems with the latest IT and telecommunication technologies.
• Powerfull central module with integrated mostly universal inputs (digital or analog) and with analog, relay, and SSR outputs.

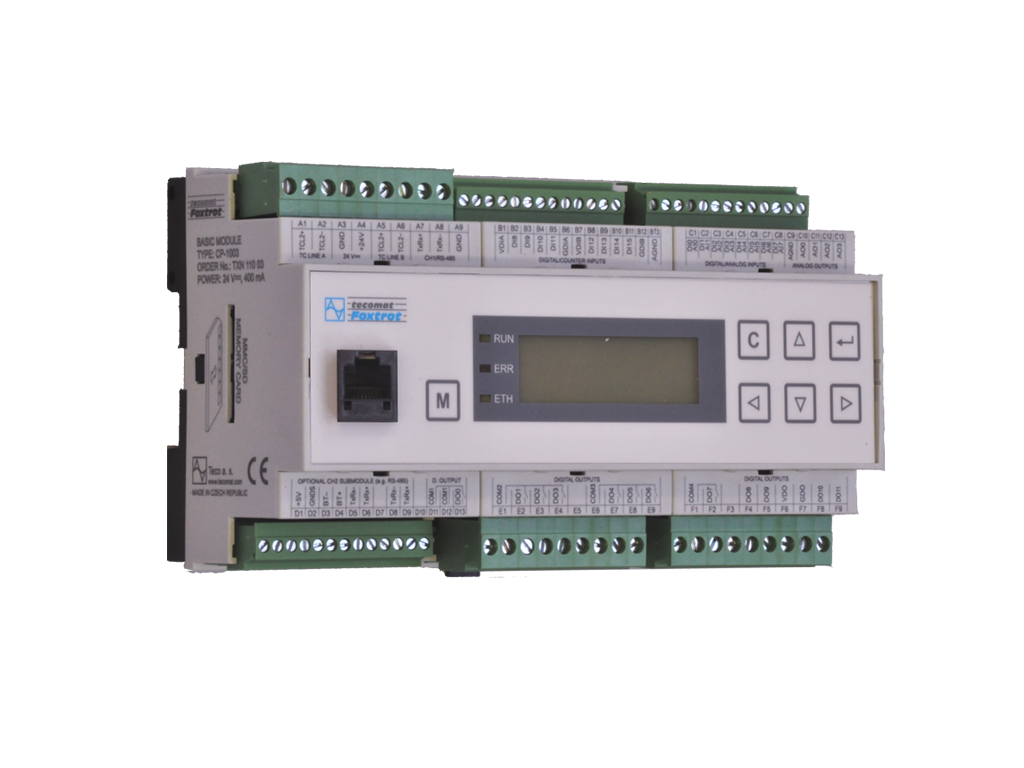

• Type CP-1018 is expanded with built-in display 4 × 20 characters and 6 keys. Available code pages: ASCII, CP 1250 (Central European), CP 1251 (Cyrillic), CP 1252 (Western European), CP 1253 (Greek), CP 1255 (Hebrew)...
• Each of 10 universal inputs may be alternatively used as analog or digital input (potential free contact).
• 4 of 10 universal inputs may be used as current inputs 4(0)÷20 mA, the range is set by jumper. Other inputs may be configured on one of ranges Ni1000, Pt1000, OV1000. The range of measurement is set as user configuration.
• Other 2 analog inputs may be used for connecting of thermocouples, or for voltage measurement in range 0 – 2 V.
• 6 standard 3 A relay outputs and 1 10 A output.
• 4 SSR (Solid State Relay) outputs for use of pulse control (PWM).
• Memory is expandable by SD/SDHC/MMC cards, built-in file system compatible with FAT32.
• Built-in clocks and calendar.
• No. of I/O is expandable up to 148 I/O, resp. up to 10 modules on high speed internal serial bus TCL2 (345 kbps).
• Other I/O can be expanded also by 2 wire installation bus CIB (19.2 kbps). The maximum number of CIB branches is 9.
• On terminals CIB+ and CIB- are powered bus (with output performance max. 2 W, so in this case, there is no need to use module C-BP-0001M).
• More PLC Tecomat can be networked by Ethernet LAN or by RS-485 bus.
• Free programmable PLC according to IEC EN 61131-3.
• On-line programming during operation.
• Programming and data communication (in LAN, WiFi, WAN, Internet) is available on Ethernet port (100 Mbps) with a fixed IP address or DHCP.
• 2 serial ports, 1 RS-232, the other one with an optional interface from line MR-01xx (up to 345 kbps), configurable UART.
• Optional connection of RFox master RF-1131 via TCL2. Radio channel 868.35 MHz (max. 4 × ), may be combined with masters of CIB bus CF-1141.
• Built-in PROFIBUS DP Master, Modbus RTU/TCP slave, BACnet slave on Ethernet port, IEC 60870 5 104 as paid application profile.
• Built-in web server, free creation of user internal web site stored on the memory card (XML technology).
• Enables to create a web page of any connected controlled object.
• May be used as a programmable converter of communication protocols.
• May be used as independently programmable datalogger for any measured or internal values.
• Compact form-factor for DIN rail mounting (9 modules width) for standard circuit breaker cabinets.
