UAE - Firex Technologies - Filling Process of FM200 Machine...

Company Firex Technologies from United Arab Emirates is using our system Tecomat Foxtrot to automate extinguishing cylinder filling process in machine to filling it by gas FM200.

Main features...
       - Ability to filling the cylinder manually and this is selectable using the software or by hardware.
       - The filling process parameters are tunable by the user through the software
       - Process information printing functionality

By Foxtrot many items are controlled by and integrated with:
       - On/off valves, two way, 0.5 inch
       - Pressure transmitters, one for Firex cylinder, and one for FM 200 tank
       - Load cell
       - Zebra Printer

By Hardware system could be set in two modes:
- Manual mode: user can operate the valves manually using switch buttons in the hardware panel. by this mode, the software will have no function.
- Auto mode: This mode actually means that the software will get control of the syste

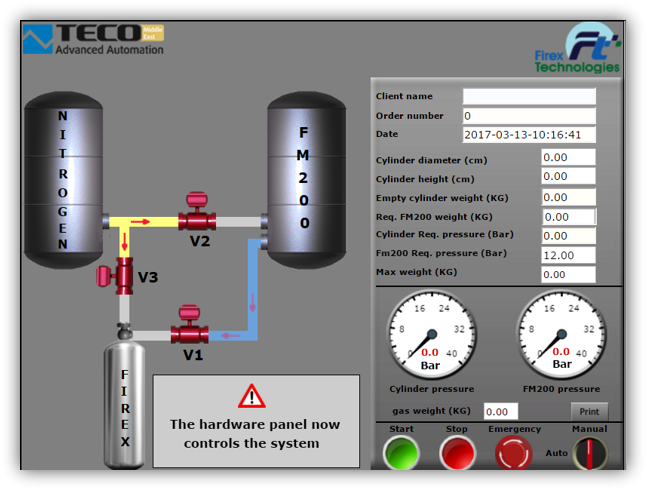

By Mosaic environment,
control program and user interface are made, user interface provides visual simulation for real components in system and interaction with user mainly for set operating specifications.
