Basic features...

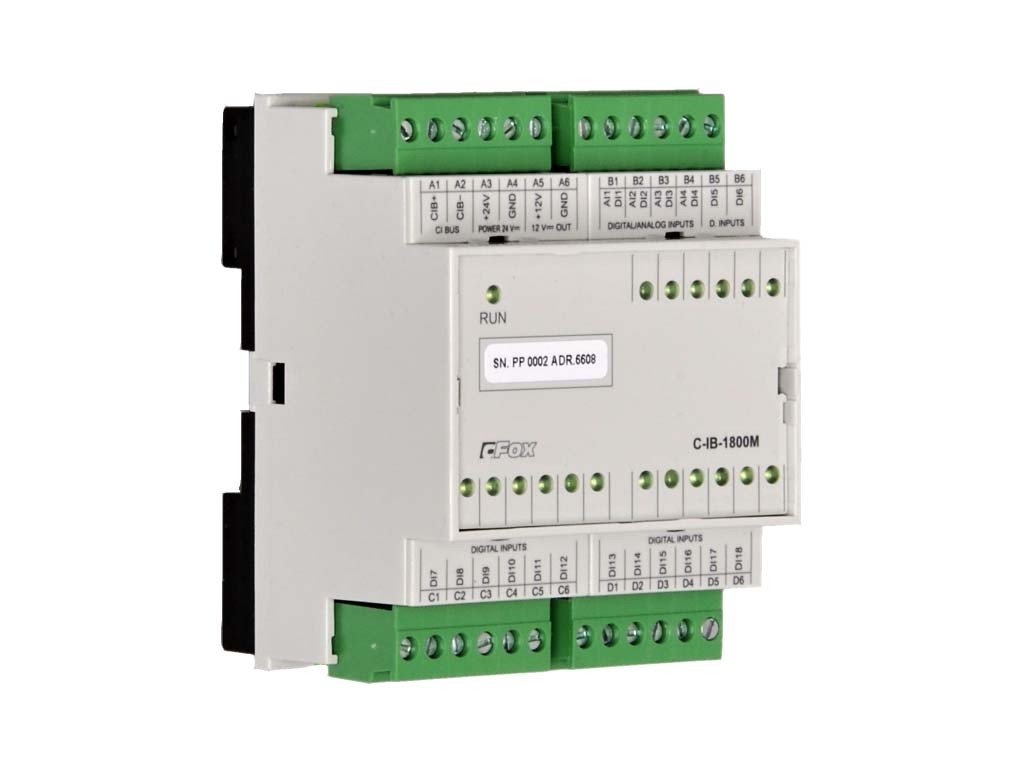

• Module on DIN rail with a combination of analog and digital inputs and outputs.
• Each module has on CIB bus only one address. On each CIB bus branch, we may connect up to 32 × 32 = 1024 analog and digital inputs and outputs in combination.
• 3 analog inputs for Resistance Temperature Detectors (RTD) and 2 analog outputs 0 – 10 V are designed for 1 – 2 regulation loop, e.g. heating, air-conditioning or for general use equipped with 8 independent inputs for voltage free contacts
• contains 4 galvanic insulated groups of relays for 5 A and 1 power relay for 16 A with separately embarrassed switching contact. Each group may be used independently for switching 24 V DC or 20 V AC in di?erent phases
• Power relays for 16 A have contacts with a combination of wolfram/AgSnO2 for reliable switching of high loads.
• Each relay is separately addressed and controlled by the program.
• After push-button MANUAL CONTROL we may each relay control by appropriate button.
• Status of digital inputs, relay outputs, mode MANUAL CONTROL, and error/operation RUN is indicated by LEDs at the front side of the module
